GEC Squirted & Sintered Tungsten Filament

The original tungsten lamps were developed in Germany under Auer (Osram), and in Austria/Hungary under Just & Hanamann (Tungsram). Production was quickly established in Britain by Sir Hugo Hirst, chairman of the British General Electric Company, thanks to his close ties with Germany as an immigrant of that country. Upon hearing of the tungsten developments Hirst visited his competitors in 1905, and came home with the exclusive British rights to both lamps.

At first it was not clear which lamp was superior, or of the patent situation, so Hirst took the astute move to invite his warring competitors to London for negotiations. They concluded on 18th October 1907 to jointly form the Wolfram Metal Filament Lamp Works at GEC's Hammersmith factory with three equal shareholdings, in which GEC would produce both the Auer and the Just & Hanamann lamps to identify which was best. At first it was a tiny operation, limited by the need to import all filaments and lack of space, so it was decided to build a new Tungsten factory nextdoor. This opened in 1909, by which time it was clear that the Auer lamp was superior, and the Hungarians sold out their share. While waiting for production to ramp up, in 1910 Hirst ordered one million GEC-branded Auer lamps from Berlin.

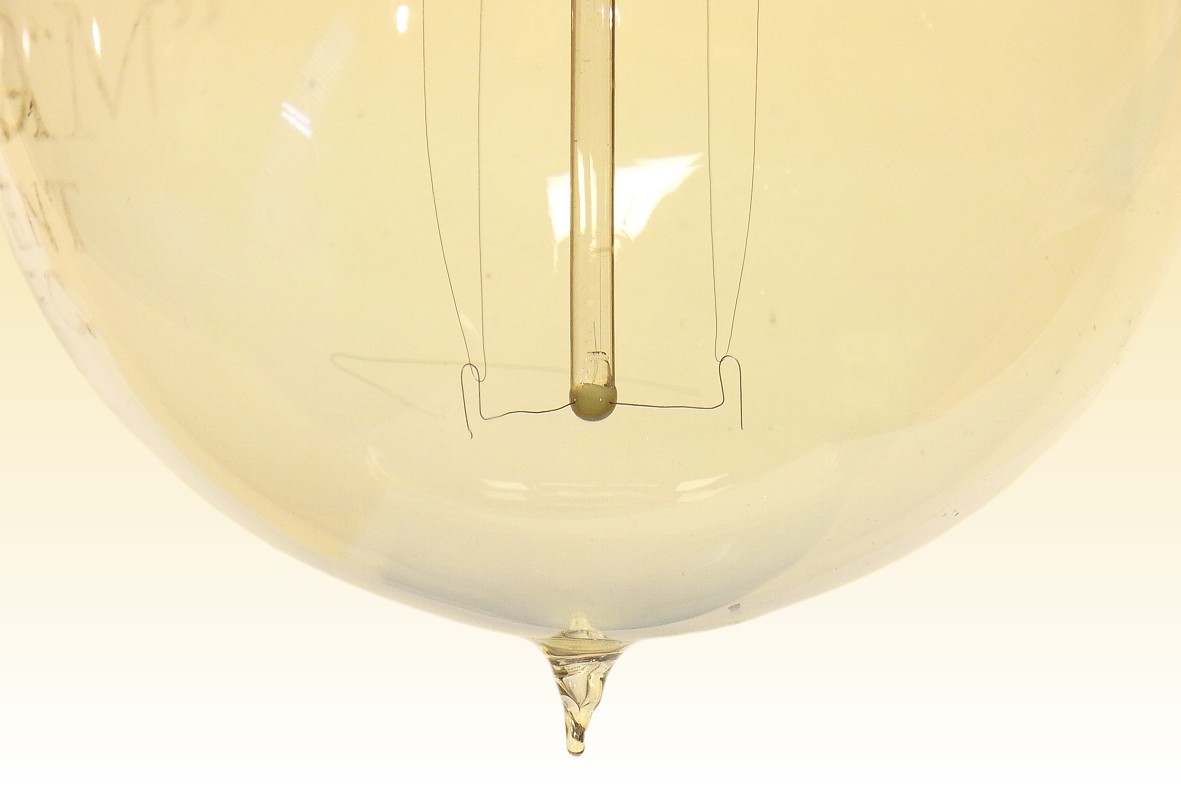

Owing to the brittleness of the early sintered tungsten filaments, they are formed in five separate hairpins and attached to the lower supports by arc-welding. They are mainted under tension by the elasticity of fine hook-shaped molybdenum support wires at the upper end of the mount. The glass-to-metal seals of the stem are formed to platinum wires, and the lamp has been evacuated via the characteristic tip at the crown of the bulb.
Manufacturer: The General Electric Co. of England
Lamp Power: 17 Watts
Lamp Voltage: 50 Volts
Lamp Current: 0.34 Amperes
Cap Type: B22d/30x32 Brass + vitrite
Bulb Type: G-75 G-23.5 in eighths/inch
Bulb Finish: Clear Soda-lime glass
Filament Type: 3S-2 4x Hairpin
Atmosphere: Vacuum Red P getter
Luminous Flux: 188 lumens
Luminous Efficacy: 1.06W per HCP
Luminous Intensity: 16 Hefner CP 14.5 British CP
Beam Distribution: N/A
Colour Temperature & CRI: CCT: 2400K CRI: Ra 100
Chromaticity Co-ordinates: CCx: 0.486 CCy: 0.415
Rated Lifetime: 1500-2000 hours
Burning Position: Universal
Overall Length: 127 mm 6 inches
Light Centre Length: 76 mm 3 inches
Factory: Hammersmith England
Date of Manufacture: July 1908 Date Code: 2779
Original Value: 2s9d (1910)
References: 1) Osram-GEC Tungsten Lamp Catalogue, 1910 UK
2) History of the GEC Robertson-Osram Hammersmith Lampworks
3) 100 Years Osram, Osram Centenary Book 2006, pp.25, 63-64
4) Death of a Lightbulb, J.Otten, publ. pp.51-52, 63, 287
5) History of the General Electric Company of England - Hugo Hirst (Web Archive)
