Spectral Lamp - Noble Gas - Neon

Spectral lamps find a home in laboratory applications where they are commonly employed as stable, high quality sources of discrete spectral lines. Atomic spectra were originally produced by creating an arc between electrodes fabricated of the metal to be studied, or by sprinkling a powdered salt into a gas flame. Both methods produce somewhat unstable results and require constant attention. In the 1940s a range of electric discharge lamps was developed to supersede these crude methods, and delivered much more stable results by virtue of the high purity and constant output.

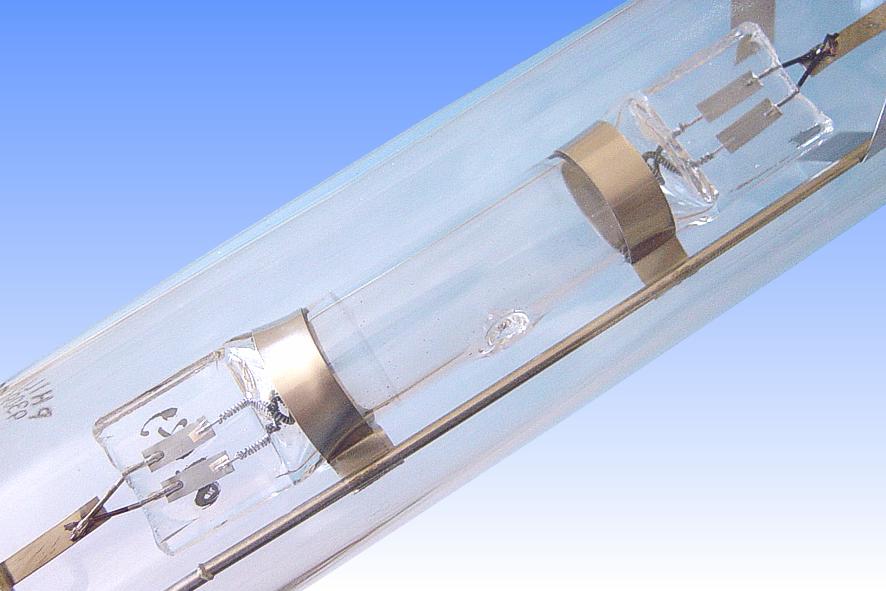

Five lamps make up the Noble Gas group in the Philips series. These are Helium, Neon, Argon, Krypton and Xenon. They employ a variety of different discharge tube styles over the years. Originally all were fabricated in soft glass tubes. The Helium lamp however dissipates a rather greater power than any of the others, and its discharge tube operates at a proportionately higher temperature. For this reason, the end chambers around the temperature electrodes are formed into bulbous regions to limit the glass temperature. In more recent years, quartz arc tubes have superseded original glass types on account of the fact that semi-mechanised equipment could be employed for their production.

The electrode assembly in each of the noble gas lamps is based on the same design employed for low pressure sodium lamps. A triple coil of black tungsten wire is wound into a beehive shaped hollow cathode, the spaces between the coils being filled with an emissive compound of barium, strontium and calcium oxides. The outer envelopes of these lamps are evacuated, except for the helium lamp which is nitrogen-filled to prevent overheating of the discharge tube.
Manufacturer: Philips Lighting - Item No. 93099E
Lamp Power: 25 Watts
Lamp Current: 0.9 Amps
Lamp Voltage: 30 Volts 400V Ignition
Cap: E27s/27 Ni Ni plated brass
Bulb Finish: Clear Soda-lime
Bulb Type: T-32
Overall Length: 183 mm
Light Centre Length: 110 mm
Electrodes: Beehive coil of black tungsten with BCT emitter
Inner / Outer Atmosphere: Inner: Neon Outer: Vacuum
Luminous Flux: 65 lumens
Luminous Efficacy: 2.6 lm/W
Colour Temperature & CRI: CCT: N/A CRI: N/A
Chromaticity Co-ordinates: CCx: 0.671 CCy: 0.329
Burning Position: Vertical cap down
Rated Life: Not published
Warm Up / Re-strike Time: Instantaneous Instantaneous
Factory: Turnhout, Belgium
Date of Manufacture: January 1985
Original / Present Value: Unknown
References: 1) Light Sources for Line Spectra, W. Elenbaas and J. Riemens, Philips Technical Review April 1950, V.11 No.10, pp. 299-302.
2) Spectrophotometric measurement of lamp.
