Philips SOI Integral Sodium Vapour - 2ndGeneration
Following the invention of the Osram-GEC SOI/H Integral sodium lamp in 1955, and its improvement a year later with the addition of a heat-reflecting glass sleeve over each limb of the discharge tube to further improve thermal insulation, Philips began to lose its former lead in low pressure sodium lamps. It's first generation integral lamp, without heat-reflecting sleeve, was only unveiled in 1958.

It was not until the 1960 introduction of the lamp featured on this page that Philips caught up and could once again compete in the sodium market. The design is somewhat different than the GEC equivalents. Instead of applying two small sleeves around each limb of the discharge tube, Philips opted for a single large diameter sleeve - perhaps to avoid infringement of the GEC patent. The thermal insulation was somewhat less effective than the GEC design and as a result Philips was unable to increase its discharge tube diameter by the same extent. The consequence of this is a higher discharge current density which limited the efficacy gain.

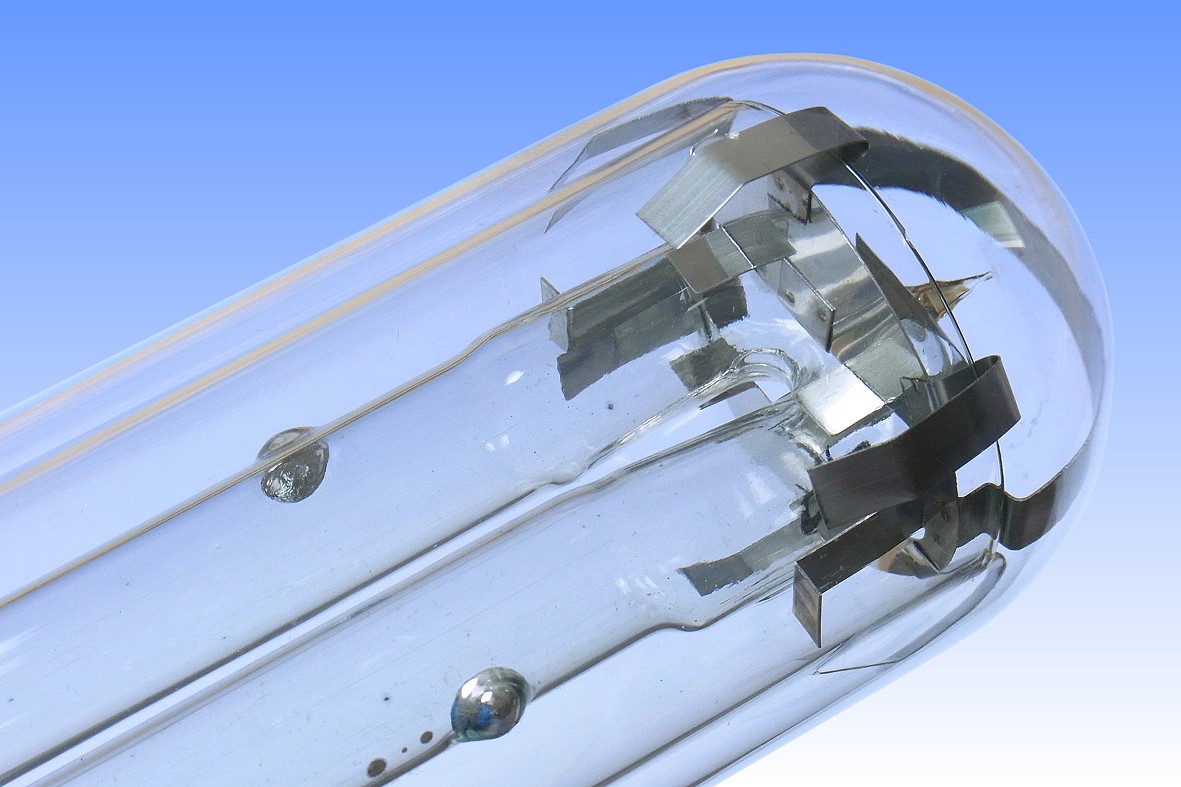

However, the narrow discharge tube did permit Philips to re-introduce the special construction of its earlier SO/H dimpled lamp. Owing to the better sodium distribution over life, and the fact that Philips had a better glass than GEC which did not stain so rapidly, the average luminous flux over life was actually better than the GEC lamps. The company also demonstrated its lead by introducing a new 200-watt rating.

The Philips SOI range was relatively short-lived, with the 60W, 85W, 140W and 200-watt ratings being superseded by SOX in 1964. The 45W was not made obsolete until 1966, owing to there being no SOX replacement for that rating.
Manufacturer: Philips Gloeilampenfabrieken
Lamp Power: 140 Watts
Lamp Current: 0.9 Amps 0.81A Starting Current
Lamp Voltage: 160 Volts 450V ignition

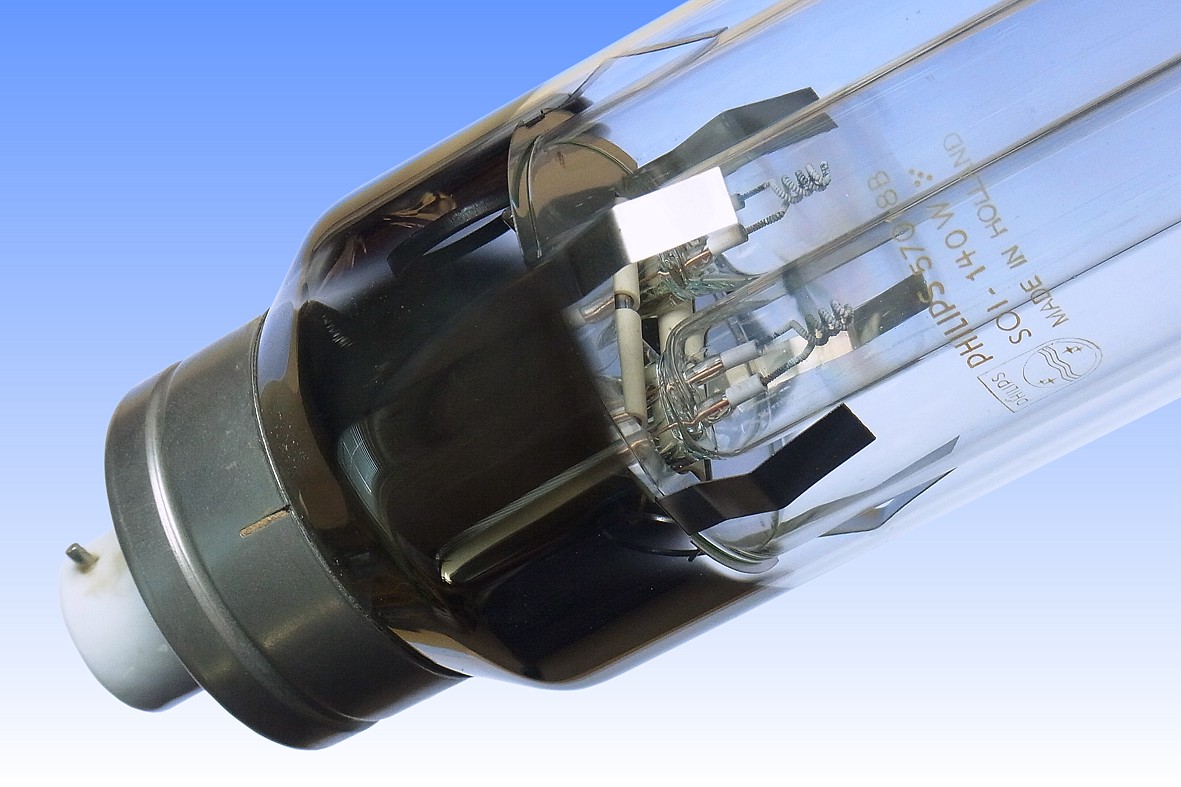

Cap Type: BY22d Porcelain Insulator
Bulb Type: T-65 T-20½ in eighths/inch
Bulb Finish: Clear Soda-lime glass
Electrodes: CCC-4 Beehive BCT emitter
Arc Length:
Atmosphere: Na | 99% Ne, 1% Ar Outer: Hard Vacuum
Luminous Flux: 13,000 lm (@ 100 hrs) 12,200 lm (mean to 4000hrs)
Luminous Efficacy: 92.9 lm/W (@ 100 hrs)
Colour Temperature & CRI: CCT: 1700K CRI: Ra -44
Chromaticity Co-ordinates: CCx: 0.574 CCy: 0.425
Rated Lifetime: 6,000 hours 50% survival

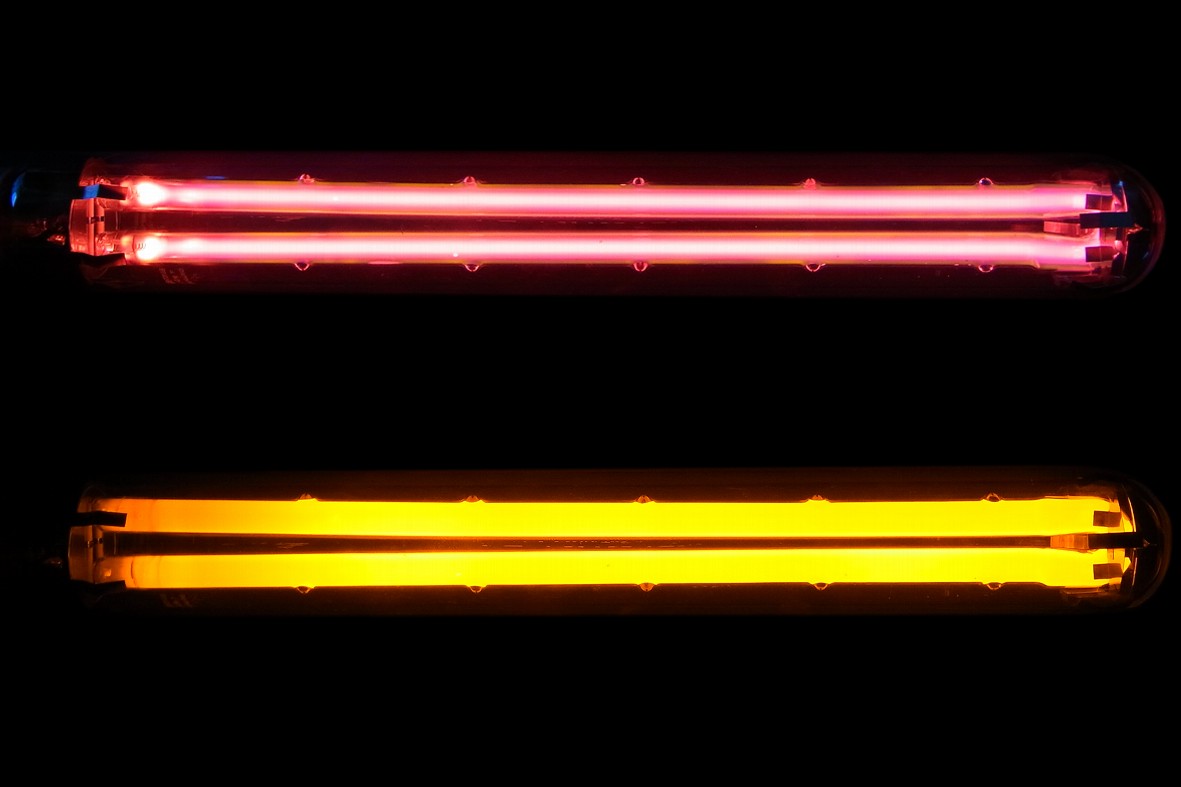

Warm-up & Re-strike time: 20 minutes Instantaneous
Burning Position: Horizontal ± 20°
Overall Length: 525 mm 20¾ inches
Light Centre Length: 290 mm 11½ inches
Factory: Eindhoven Netherlands
Date of Manufacture: February 1962
Original / Present Value: £4 9s 0d (1964) £80.54 (2014)

References: 1) Philips UK Lamp Catalogue, 1960.
2) Philips UK Lamp Catalogue, 1962/63.
3) Philips UK Lamp Catalogue, 1964.
4) Philips UK Lamp Catalogue, 1965.
5) Philips UK Lamp Catalogue, 1966.
