SLI/H 60W Golden Linear Sodium

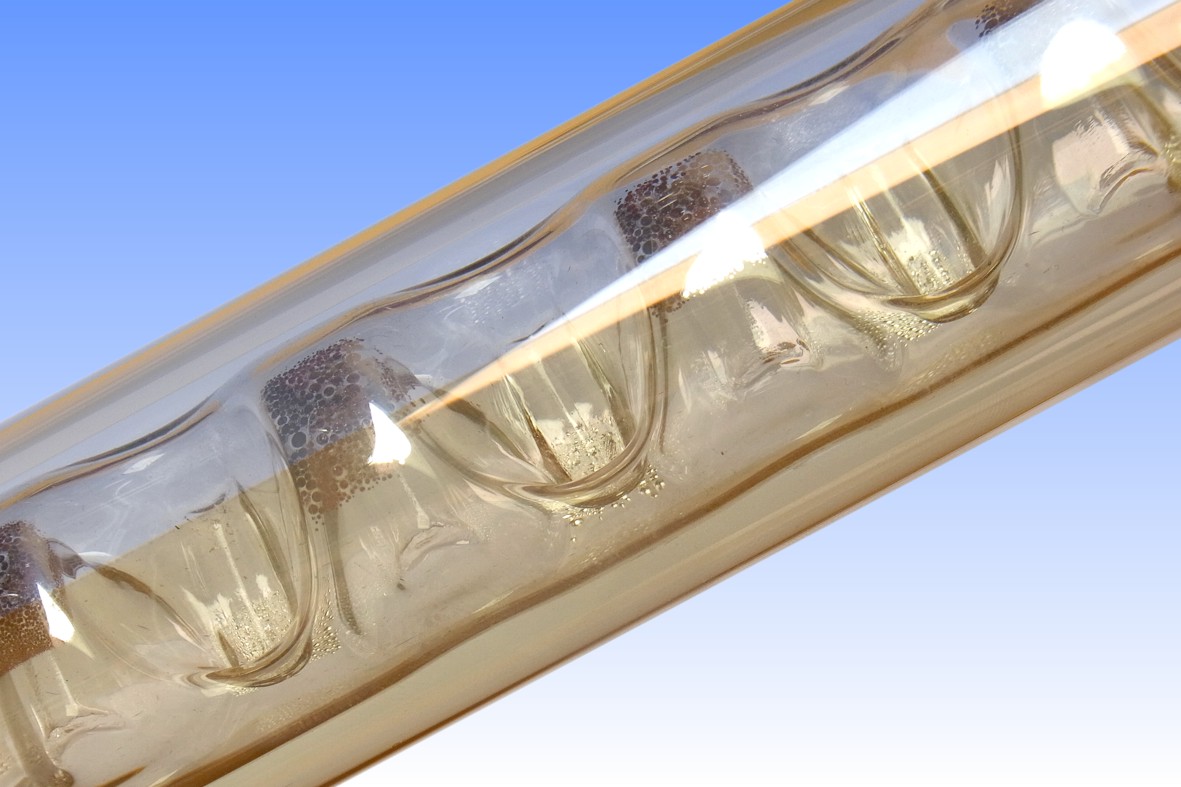

In 1961 Osram-GEC put the first lamp on the market which made use of thin-film optical coatings for the purpose of heat reflection. Known as the Golden Linear, it offered a notable improvement in performance beyond AEI-Mazda's equally innovative Linear Sodium lamps that had been introduced a few years earlier. Whereas the AEI linear sodium lamps employed a glass sleeve around the discharge tube plus an evacuated outer envelope to provide the necessary thermal insulation, the GEC technology applied a 50 nanometre thick film of pure gold, sputtered onto the inside of the outer jacket.

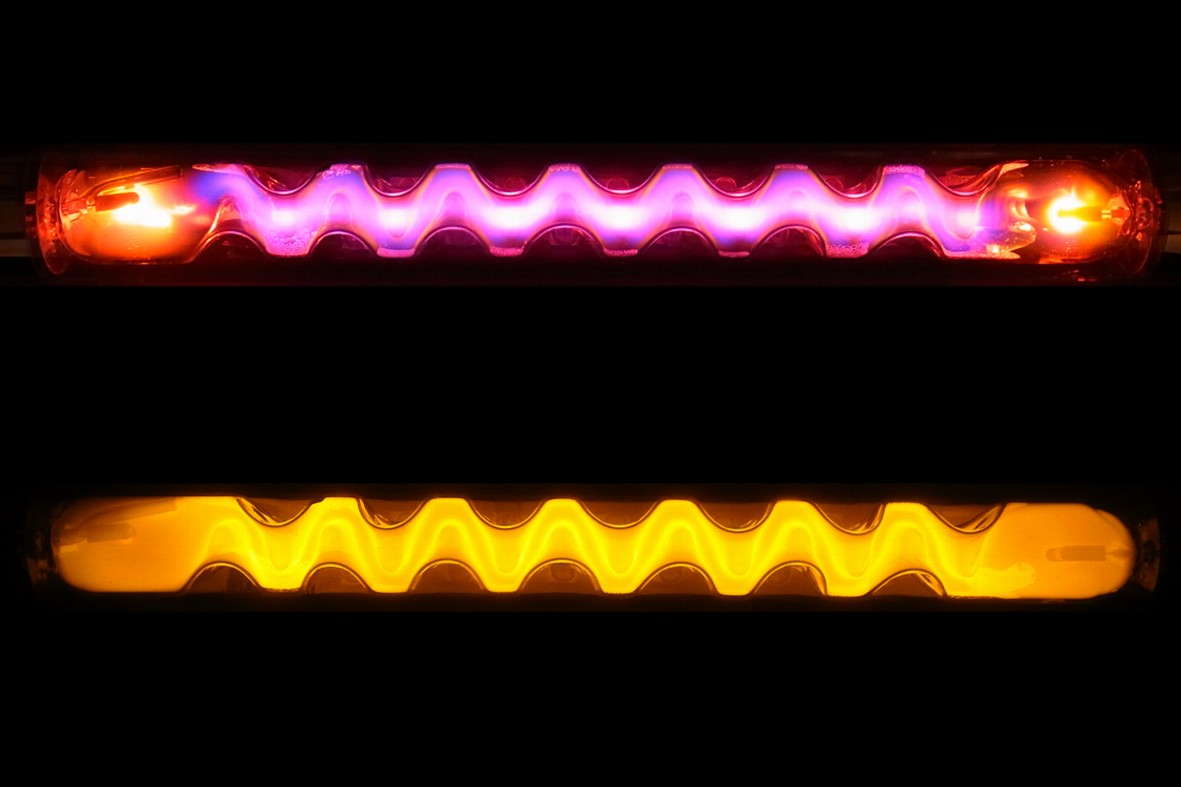

Although costly, this raised efficacy by about 10% because gold is a better heat reflector than glass. Absorption of sodium light by the coating is considerable, and earlier tests with gold films on SOI lamps had shown that it was not practical because it caused too much reduction in luminous flux. However the asymmetric light distribution of the grooved SLI discharge tube allowed this problem to be overcome, by leaving two clear bands coinciding with the direction in which the majority of the light is radiated.

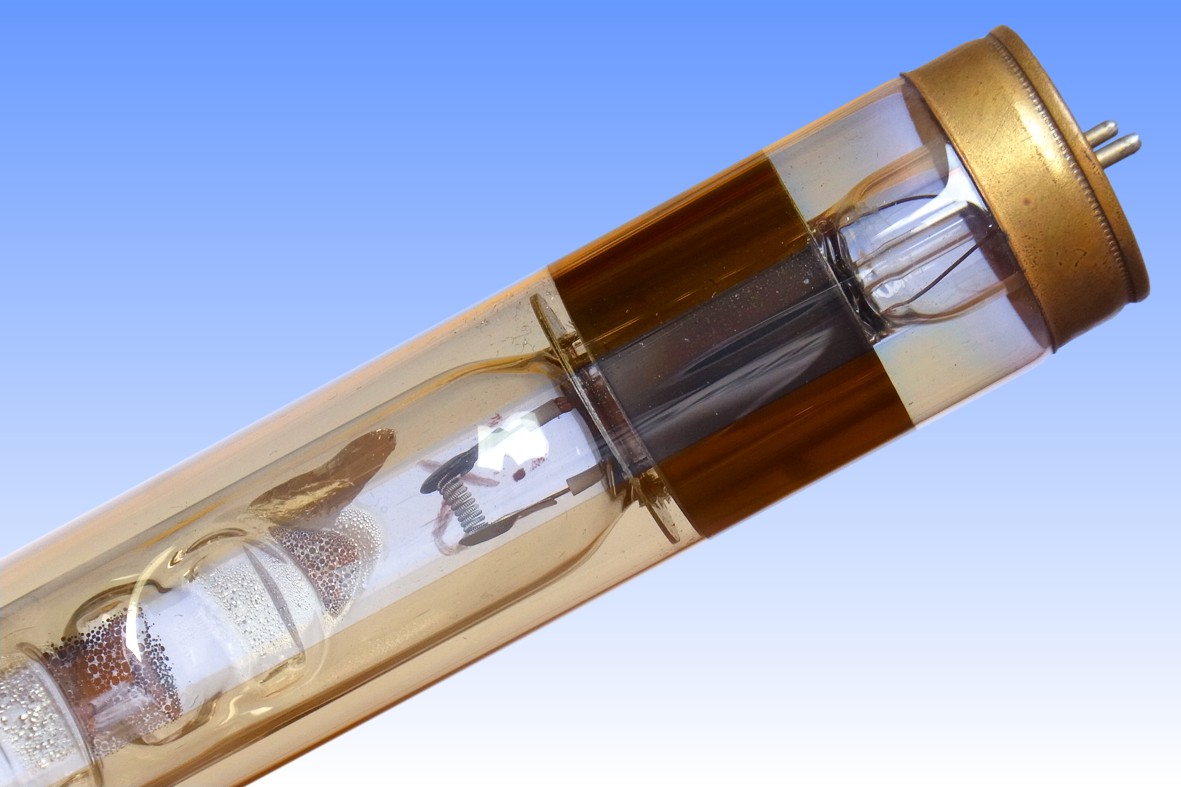

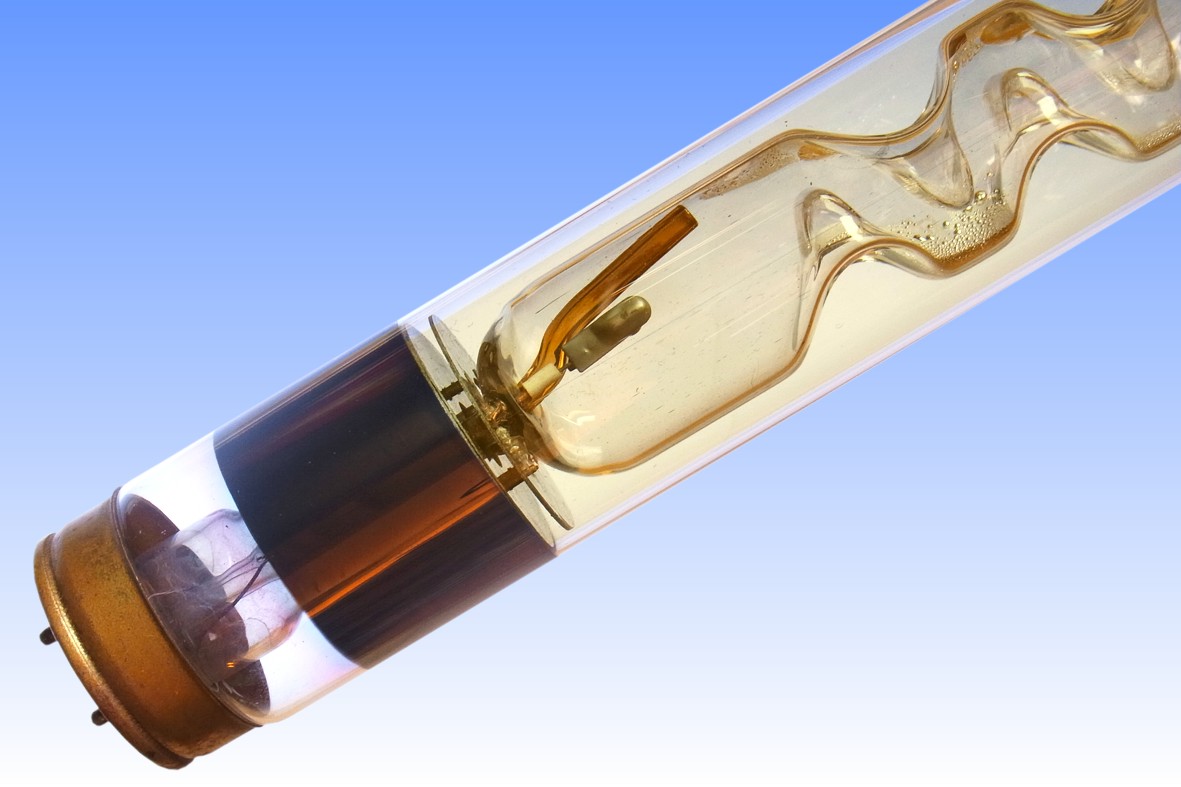

The GEC Golden Linear lamps were produced in two ratings of 60W and 175W, intended to replace the AEI 60W and 200W models. Gold-coated lamps were produced only until 1966 when they were superseded by more efficient models having a tin-oxide semiconductor film. This particular lamp is an experimental version that was not sold by GEC. It has a discharge tube shape similar to that employed German Osram on its Na/T 200W-3 linear sodium lamp, with much shorter indents than were normally applied. It is not known whether or not this brought any performance advantage.

Manufacturer:	The General Electric Company of England PLC
Lamp Power:	60 Watts
Lamp Current:	0.83 Amps
Lamp Voltage:	80 Volts
Cap Type:	2x G13	Brass
Bulb Type:	T-38	T-12 in eighths/inch
Bulb Finish:	Striped Gold Film 50nm	Soda-lime glass
Electrodes:	CC-6	Black W + BCT emitter
Arc Length:
Atmosphere:	Na \| 99% Ne, 1% Ar	Outer: Hard Vacuum
Luminous Flux:	5,700 lm (@ 100 hrs)
Luminous Efficacy:	95 lm/W (@ 100 hrs)
Colour Temperature & CRI:	CCT: 1700K	CRI: Ra -44
Chromaticity Co-ordinates:	CCx: 0.574	CCy: 0.425
Rated Lifetime:	6,000 hours	to 70% survival
Warm-up & Re-strike time:	Approx. 15 minutes	Instantaneous
Burning Position:	Horizontal ± 20°
Overall Length:	419.1 mm	16½ inches
Light Centre Length:	N/A
Factory:	Shaw, Oldham	England
Date of Manufacture:	Approx 1961-66
Original / Present Value:


References:	1) Brochure for GEC Clearmain 9494/5 Lantern, July 1964, Simon Cornwell Website
	2) Osram-GEC Technical Data, Low Pressure Sodium Lamps L4/HT, October 1969.
