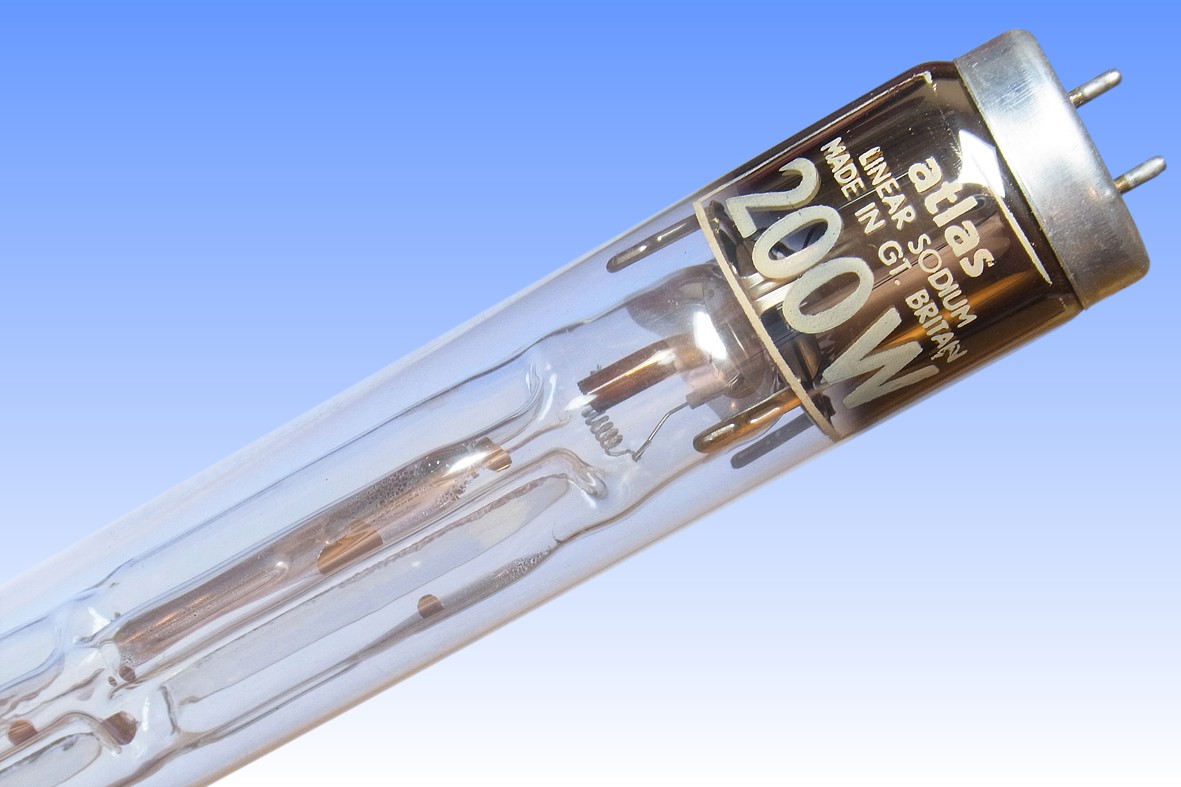

Atlas SLI/H 200W Linear Low Pressure Sodium

Following AEI's 1959 invention of the linear sodium concept, the next major change arrived with the 1966 introduction of another novel form of discharge tube which pushed the luminous efficacy higher again. In parallel semiconductor IR coatings were applied to improve thermal insulation.

This lamp employs a discharge tube whose cross-section takes the shape of a 4-leaf clover. It offers an improvement over the original crescent shape by further increasing light extraction and decreasing current density. Maintenance of sodium position over life is ensured by 88 grooves known as 'greenhouses' running along the edge of each 'leaf'.

A spinoff advantage is a reduction in striking voltage thanks to the unobscured line-of-sight between the electrodes, enabling the use of a low pressure neon-argon-xenon gas filling to bring a further efficacy increase without loss of life. Following Thorn Lighting's takeover of AEI, the new lamps switched to Thorn's Braided cathodes, formed from seven tungsten wires woven into a hollow tube, which contain more emissive material and bring another life extension. The heat-reflective coating is of tin oxide.

So significant were these improvements that they allowed the 20,000lm output of the original 200W linear sodium to be boosted 25% to 25,000lm. These innovations earned Thorn Lighting the top place in the SLI lamps market and the reliability of the Linear design was second to none, with very few early failures. The 200W SLI/H was improved again around 1971 with the HO model having a more advanced 5-leaf clover shape with indium-tin film, as well as more robust beehive cathodes (for use on instant-start gear).
Manufacturer: Thorn Electrical Industries
Lamp Power: 200 Watts 190W Initial
Lamp Current: 1.6 Amps
Lamp Voltage: 135 Volts <420V Ignition
Cap Type: 2x GY13 Aluminium + Paxolin
Bulb Type: T-38 T-12 in eighths/inch
Bulb Finish: Tin oxide film Soda-lime glass
Electrodes: BC-6 Braided Black W + BCT emitter
Arc Length: 753 mm 29 5/8 inches
Atmosphere: Na | 99%Ne 0.8%Ar 0.2%Xe Outer: Hard Vacuum
Luminous Flux: 25,500 lm (@ 100 hrs) 25,000 lm (average)
Luminous Efficacy: 134.2 lm/W (@ 100 hrs) 125 lm/W (average)
Colour Temperature & CRI: CCT: 1700K CRI: Ra -44
Chromaticity Co-ordinates: CCx: 0.574 CCy: 0.425
Rated Lifetime: 6,000 hours 70% survival, 100% flux
Warm-up & Re-strike time: Approx. 15 minutes Instantaneous
Burning Position: Horizontal ± 20°
Overall Length: 908.8 mm max 35 3/4 inches
Insertion Length: 895.0-901.7 mm max 35 3/4 inches
Factory: Leicester England
Date of Manufacture: April 1974 Date Code TY0204
Original & Present Value: £6.83 (1972) £86.22 (2014)
References: 1) Thorn Lighting Comprehensive Catalogue, UK, 1973/74, p.7:10
2) Thorn Lighting Comprehensive Price List, UK, 19th April 1972
