Philips HP/AB 400W Lead-Gallium Halide Lamp

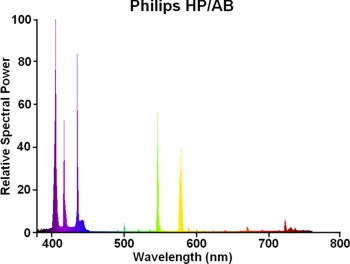

The HP/AB lamp is one of the earliest metal halide sources designed to provide an ultra-violet spectrum. The arc tube is dosed with lead and gallium iodides, radiating UV-B and UV-A in the region of 280 to 440nm. The lamp is intended for photochemical processes, but was superseded by the HPM family and discontinued in the early 80s.

It follows the design features of Philips' early HPI metal halide lamps. The arc tube is of somewhat larger volume to achieve optimum efficiency of UV generation. Heat reflective zirconia coatings are present behind the electrodes. The arc tube is mounted in an outer bulb filled with nitrogen to protect the seals and a zirconium getter is present to reduce hydrogen impurities. A P40s pre-focussed cap permits accurate alignment of the arc tube in the optical apparatus.

Incidentally the close-up photo of the pinch seal reveals a curious design feature of early Philips metal halide arc tubes. To attain high purity, the Philips process involves first tipping off the arc tubes with a long exhaust tube, followed by a 40-hour furnacing to bake out impurities. Then they are re-pumped and the exhaust tube short-tipped. This furnacing process was originally carried out in air, which would of course cause oxidation and failure of the moly foil seals. Protection was applied by melting two small quartz tubes over the lead wires of each seal and pumping them to rough vacuum. After furnacing the quartz tubes were cut off, some of the residue can be seen here. The process was labour intensive and a small army of women was employed in attaching, evacuating and removing these tubes. During the 1980s Philips changed to furnacing in an inert atmosphere and the process was abandoned.
Manufacturer: NV Philips Gloeilampenfabrieken
Lamp Power: 400 Watts
Lamp Current: 3.2 Amps
Lamp Voltage: 140 Volts
Cap Type: P40s/45 (Mogul Prefocus) Ni Plated Brass + Porcelain
Bulb Finish: Clear Borosilicate glass
Bulb Type: T-51 T-16 (in eighths/inch)
Overall Length: 290 mm 11 1/2 inches
Light Centre Length: 178 mm 7 inches
Arc Length:
Electrodes: Backwound tungsten No emitter
Atmosphere: Inner: Hg,PbBr2,Ga2I6 | Ar Outer: Nitrogen
Luminous Flux: 9,150 lm measured data
Luminous Efficacy: 22.9 lm/W measured data
Colour Temperature & CRI: CCT: 9200K CRI: Ra 35
Chromaticity Co-ordinates: CCx: 0.290 CCy: 0.283
Burning Position: Universal
Rated Lifetime: Not published
Warm-up & Re-strike Time: 4 minutes 15 minutes
Factory: Turnhout Belgium
Date of Manufacture: May 1980 Date Code E0
Original & Present Value: Unknown
References: 1) Philips Compact Lighting Catalogue 1979
2) Philips Catalogue "Lamps for Industrial Processing and Reprography", 1989
