Duro-Test Fluomeric Self-Ballasted Mercury

Self-ballasted mercury lamps made by American firm Duro-Test marked a significant departure from the traditional design principles that had been applied to lamps of this type. The filament in early lamps was employed to improve the colour properties of the mercury discharge. However the high power dissipation in the filament made these lamps rather inefficient. A high filament temperature was also required, leading to a short life of around 3000 hours.

Duro-Test took a different approach, and instead optimised its lamps for the best luminous efficacy, with only a modest degree of colour correction. The filament temperature was lowered to reduce its dissipated energy, and to permit an increase in life. The marketing strategy behind these lamps was primarily to reduce system cost by eliminating the ballast, while offering slightly improved colour. The first 'Fluomeric' model was the 750W in R-57 bulb, launched in 1956. Later in 1959, this 450W version and the larger 1750W were added.

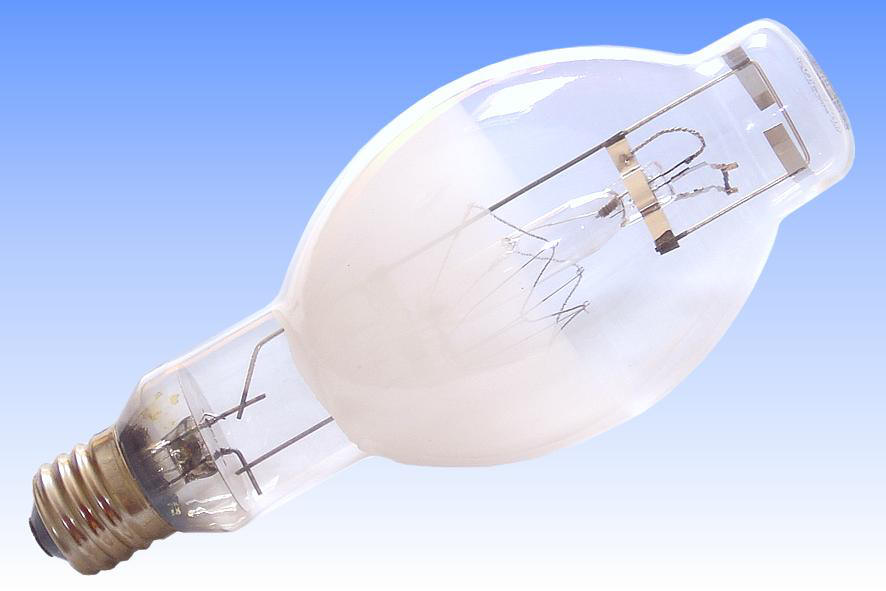

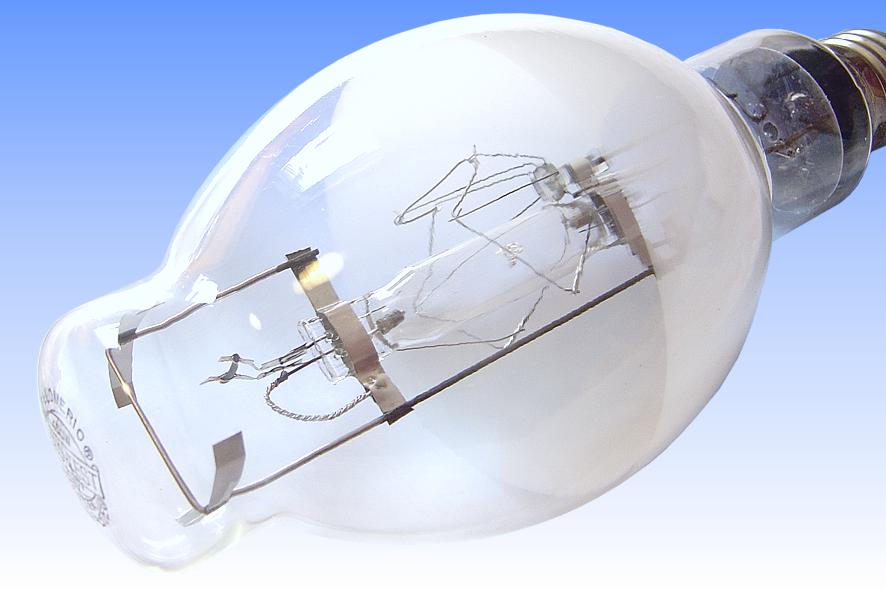

The arc tube is essentially the same as a 250W mercury lamp, and is ballasted by a 200W filament. The net colour temperature is high at 4400K and the colour rendering low at 30. Performance may be contrasted with standard 500W self-ballasted lamps, which dissipate about 150W in the discharge and 350W in the filament, and show 3500K colour temperature with Ra 65, but lower efficacy. The bulb is half-coated with a very thin layer of yttrium vanadate, to direct more light downwards while providing some colour correction. Note also the early arc tube design with hand-shrunk regions above the seals. Gettering in this lamp is performed by a zirconium-aluminium paint on the support frame, as well as red phosphors applied to the filament.
Manufacturer: Duro-Test Lighting Corporation
Lamp Power: 450 Watts
Lamp Current: 2.35 Amps (Power Factor 0.94)
Lamp Voltage: 208 Volts (198 - 217V range)
Cap Type: E39s/41 Nickel Plated Brass
Bulb Finish: Half Yttrium Vanadate Lead Borosilicate glass
Bulb Type: BT-117 BT-37 (in eighths/inch)
Overall Length: 292 mm 11½ inches
Light Centre Length: 178 mm 7 inches
Arc Length: 55 mm 2⅛ inch
Electrodes: Backwound coil Double carbonate emitter
Inner / Outer Atmosphere: Inner: Ar | Hg Outer:  80:20 Ar:N2
Luminous Flux: 13,000 lm @ 100 hours
Luminous Efficacy: 28.9 lm/W @ 100 hours

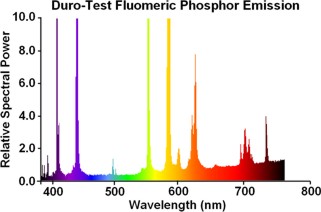

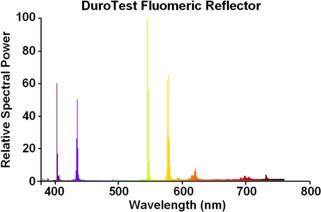

Colour Temperature & CRI: CCT: 4400K CRI:  Ra30
Chromaticity Co-ordinates: CCx: 0.371 CCx: 0.408
Burning Position: Universal
Rated Lifetime: 7,000 hours
Warm-up / Re-strike Time: 3-4 minutes 5-6 minutes
Factory: North Bergen, NJ U.S.A.
Date of Manufacture: February 1970/78
Original / Present Value:
References: 1) "Self Ballasted Vapor Lamps", H.S. Strauss & W.E. Thouret, Illumination Engineering, February 1959, pp96 - 106.
