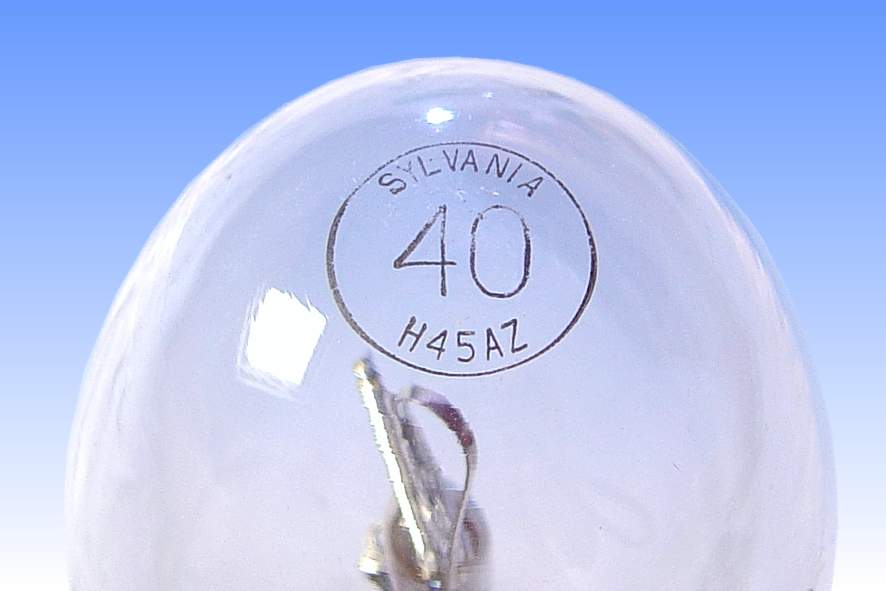

Sylvania Low Wattage Mercury H45-AZ

In the late 1960s Sylvania introduced a family of low wattage mercury lamps primarily intended for interior lighting as an energy saving alternative to mains voltage incandescent lamps. They were offered in the new compact B-21 and decorative G-40 spherical bulbs, having a large coated surface area to minimise glare. An A-23 shape 100W lamp was also offered to directly replace the A-23 150W incandescent lamp with a higher light output. This family of mercury lamps offered the advantage of a 60% energy saving and dramatic increase in service life vs incandescent.

This 40W version represents the lowest wattage high pressure mercury lamp that has been developed for general lighting applications. With an efficacy of only 30 lumens per watt its performance is relatively poor - but it must be remembered that this is still twice as good as the incandescent lamps it was designed to replace.

The very small arc tube features the addition of heat-reflective platinum paint coatings to the end regions of the arc tube. Because the wattage is so low, it would ordinarily take a very long time for the lamp to warm up enough to vaporise the mercury dose. The heat reflectors serve to reflect heat from the glowing electrodes back into the arc tube and more quickly bring the mercury vapour pressure up to the normal operating level. Additionally, such a small arc tube would rapidly lose its heat if it was mounted in the usual gas-filled outer jacket. Consequently a vacuum outer is provided for reasons of thermal insulation. The arc tube is clearly manufactured from one of the earlier types of quartz tube manufactured by Sylvania, this being characterised by the great number of air lines present along its length.

Manufacturer:	GTE Sylvania
Lamp Power:	40 Watts
Lamp Current:	0.53 Amps (Vertical)	0.54 Amps (Horizontal)
Lamp Voltage:	90 Volts (Vertical)	88 Volts (Horizontal)
Cap Type:	E26s/25	Ni plated brass + porcelain
Bulb Finish:	Clear	Lead borosilicate hard glass
Bulb Type:	B-67	B-21 in eighths/inch
Overall Length:	165 mm	6½ inches
Light Centre Length:	95 mm	3¾ inches
Arc Length:	17mm	21/32 inches
Electrodes:	Backwound tungsten	Trimetallic oxide emitter
Atmosphere:	Inner: Hg \| Ar (10 atm)	Outer: Vacuum
Luminous Flux:	1,200 lm @ 100 hrs	1,020 lm @ 16,000 hrs
Luminous Efficacy:	30.0 lm/W @ 100 hrs	25.5 lm/W @ 16,000 hrs
Colour Temperature & CRI:	CCT: 5900K	CRI: Ra 16
Chromaticity Co-ordinates:	CCx: 0.320	CCy: 0.379
Burning Position:	Universal	Horiz. lumens 5% less
Rated Lifetime:	16,000 hours	Rated to 50% survival
Warm-up & Re-strike Time:	4-5 minutes	5-6 minutes
Factory:	Manchester NH	U.S.A.
Date of Manufacture:	Circa 1965
Original & Present Value:	Unknown


References:	1) Sylvania Mercury Lamps Brochure, April 1967.
	2) Sylvania HID Lamp Engineering Bulletin O-346, April 1977.
	3) Sylvania Designers Handbook - Light Source App. lications, J.F. Waymouth, R.E. Levin, 1980.
